Description

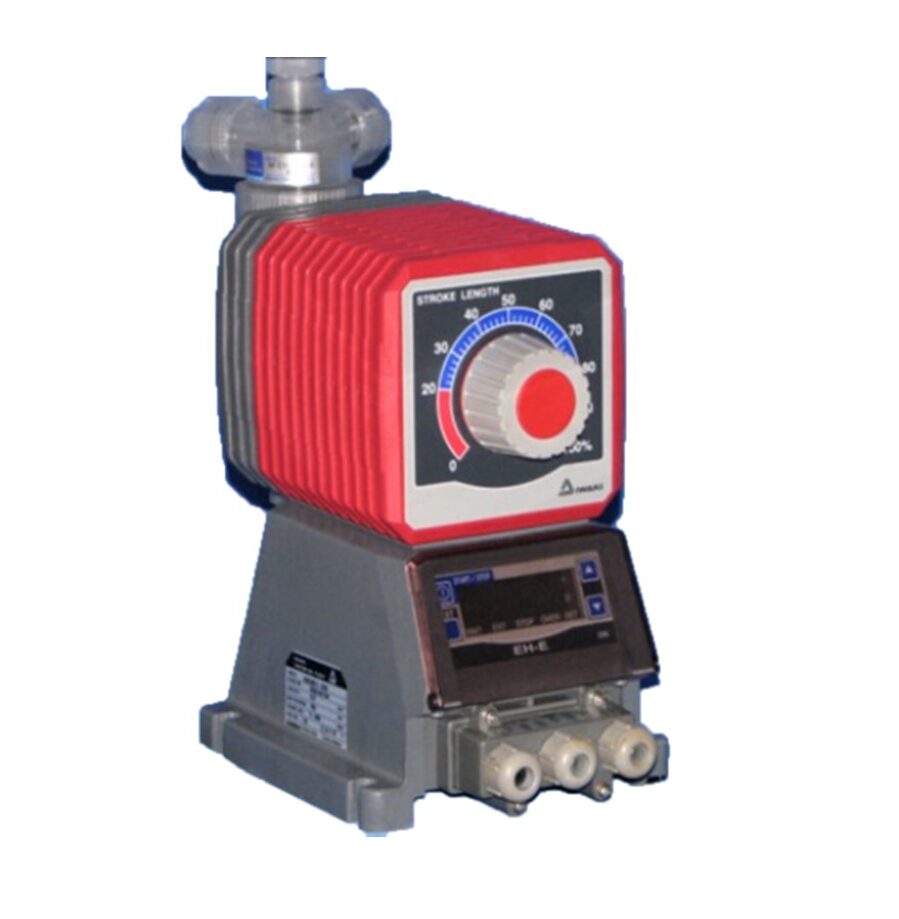

The EHE Series is the workhorse of the E-Class metering pumps. EHE Series pumps have outputs up to 20GHP and pressure capabilities to 150 PSI.
Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the treatment industry today.
EHE36E1-VEV 8.5 GPH @ 105 PSI
Key Benefits:
• Large touchscreen display with icon based programming makes setup easy
• Economical wall-mount package for easy installation
• Two sensor input slots provides extraordinary flexiblity; the same controller can be used with almost any type of sensor needed
o Copper or Nickel plus pH
o Dual analog inputs for any 4-20 mA transmitter
o Universal analytical sensor card for pH/ORP, conductivity or disinfection
o Combination analog input and analytical sensor input
• Two Virtual Inputs that are calculated from two real inputs or one input and a constant
• Multiple language support allows simple setup almost anywhere in the world
• Six control outputs allow the controller to be used in more applications
• Complete flexibility in the function of each relay
o On/Off Setpoint
o Plating Control (on/off with totalizing as metal turnovers)
o Plating Follow (activate with another relay)
o Time Proportional Control
o Proportional Control (when purchased with 4-20mA or pulse solid state opto outputs)
o In-Range or Out-of-Range activation
o Probe wash
o Flow Timer
o Alarm
o Spike Set Point
o Lead/Lag control of up to 6 relays
• On-screen and web page graphing of sensor values and control output status
• Datalogging
• Emailing Alarm messages, Datalog, Graph, or System Summary reports
• Ethernet option for remote access via the Internet, LAN or Modbus/TCP and BACnet
